Case Study · Transmission Line Replacement

How the FT3 Became a Mobile Capstan Platform

Location: Remote rolling hill terrain with spring mud, wet spots, and difficult tower access.
Problem: Wire-pulling machinery (capstan) unreachable by conventional trucks; requires specialized equipment, extra contractors, and extensive terrain prep.
Equipment: One Fat Truck FT3 with a rear-mounted capstan wire-pulling system.
Result: 2.5 miles of transmission line safely replaced by a four-person crew with no specialized vehicles, no extra contractors, and zero terrain preparation.

Replacing worn transmission lines across remote terrain isn't just an access problem, it's an equipment problem. You need specialized wire-pulling machinery like a capstan, you need it positioned precisely near the towers, and you need it stable enough to safely pull thousands of feet of heavy cable under tension. For a utility crew replacing lines across 2.5 miles of rolling hill terrain in early spring, the solution wasn't hiring a specialized contractor or building custom access, it was mounting their capstan directly to a Fat Truck FT3.

The result was a four-person crew completing a job that would typically require multiple specialized vehicles, additional contractors, and extensive terrain preparation.

Location

Remote rolling hill terrain with spring mud, wet spots, and difficult tower access conditions.

Equipment

Fat Truck FT3 with rear-mounted capstan wire-pulling system for transmission line replacement operations.

Mission

Replace 2.5 miles of transmission line by safely positioning capstan equipment in areas conventional trucks could not reach.

Explore the FT3 Pickup

Talk to an access/solutions specialist

Mission at a glance

Objective: Replace 2.5 miles of transmission line across remote terrain.

Constraints

Deep spring mud, wet spots, and difficult tower access that conventional trucks could not reach; required stable placement of heavy wire-pulling equipment.

Solution

Mounted the capstan wire-pulling machinery directly to a Fat Truck FT3, allowing the crew to drive straight through the mud and position the equipment precisely at the towers.

Side benefit

Allowed a simple four-person crew to complete the entire job without needing multiple specialized vehicles, extra contractors, or extensive terrain preparation.

The Challenge

Wire Pulling Where Conventional Platforms Can't Go

This transmission line replacement project presented a familiar but frustrating challenge: the capstan equipment needed to pull new wire was designed to mount on pickup trucks, but pickup trucks couldn't access the tower locations. The rolling hills and spring conditions meant potential wet spots and mud holes from winter thaw scattered throughout the route. Even where ground appeared solid, the risk of bogging down a conventional truck carrying heavy capstan equipment was too high.

Traditional solutions would have meant one of three approaches: hiring a specialized contractor with custom-built access equipment, attempting to create temporary access roads to get trucks close enough, or hand-carrying equipment across difficult terrain and setting up portable pulling systems. All three options add cost, time, and complexity to what should be straightforward line work.

The crew needed a platform that could position the capstan equipment exactly where needed, remain stable during wire-pulling operations that generate significant tension forces, and navigate spring terrain conditions without getting stuck or requiring route preparation. And ideally, the equipment would be familiar enough that operators wouldn't need extensive retraining on new systems.

Outcome: 2.5 miles of transmission line safely replaced with a single utility crew, eliminating the need for specialized contractors or custom access roads.

FT3 Process

Why the FT3 Capstan Platform Works

The Fat Truck FT3 solved multiple problems simultaneously. By mounting the capstan to the rear of the FT3, the crew created a mobile wire-pulling platform that could access terrain impossible for conventional trucks while providing the stability and control operators expect from traditional capstan setups.

The FT3's amphibious capability and low ground pressure meant spring mud holes and wet spots from winter thaw weren't obstacles, they were non-issues. Where a pickup truck would sink or require winching out, the FT3 simply drove through, positioning the capstan within optimal working distance of each tower location.

For the operators, the transition was seamless. Capstan controls mounted behind the FT3 worked identically to traditional pickup-mounted systems—same layout, same operation, just connected to equipment that could actually reach the work site. This familiarity kept operations safe and efficient. Crews didn't need to learn new equipment; they just needed to know where the controls were located. The operational knowledge they'd developed over years of wire-pulling work transferred directly.

The enclosed cabin provided another critical advantage: safe, comfortable access to and from work sites. Instead of exposing crew members to spring weather, insects, and brush while bouncing across rough terrain in open UTVs, all four crew members rode in climate-controlled comfort, arriving at each location ready to work.

See our Fat Truck Demo

Mobile Capstan Platform

The FT3 carried a rear-mounted capstan system directly to remote tower locations, creating a stable wire-pulling platform where conventional trucks could not operate.

Low Ground Pressure

Spring mud, wet spots, and thaw-softened terrain were crossed without rutting, bogging down, or requiring temporary access roads or route preparation.

Enclosed Crew Cabin

The climate-controlled cabin transported the four-person crew safely and comfortably across rough terrain, keeping operators protected and ready for precision line work.

The Work

2.5 Miles of Line Replacement, One Efficient Crew

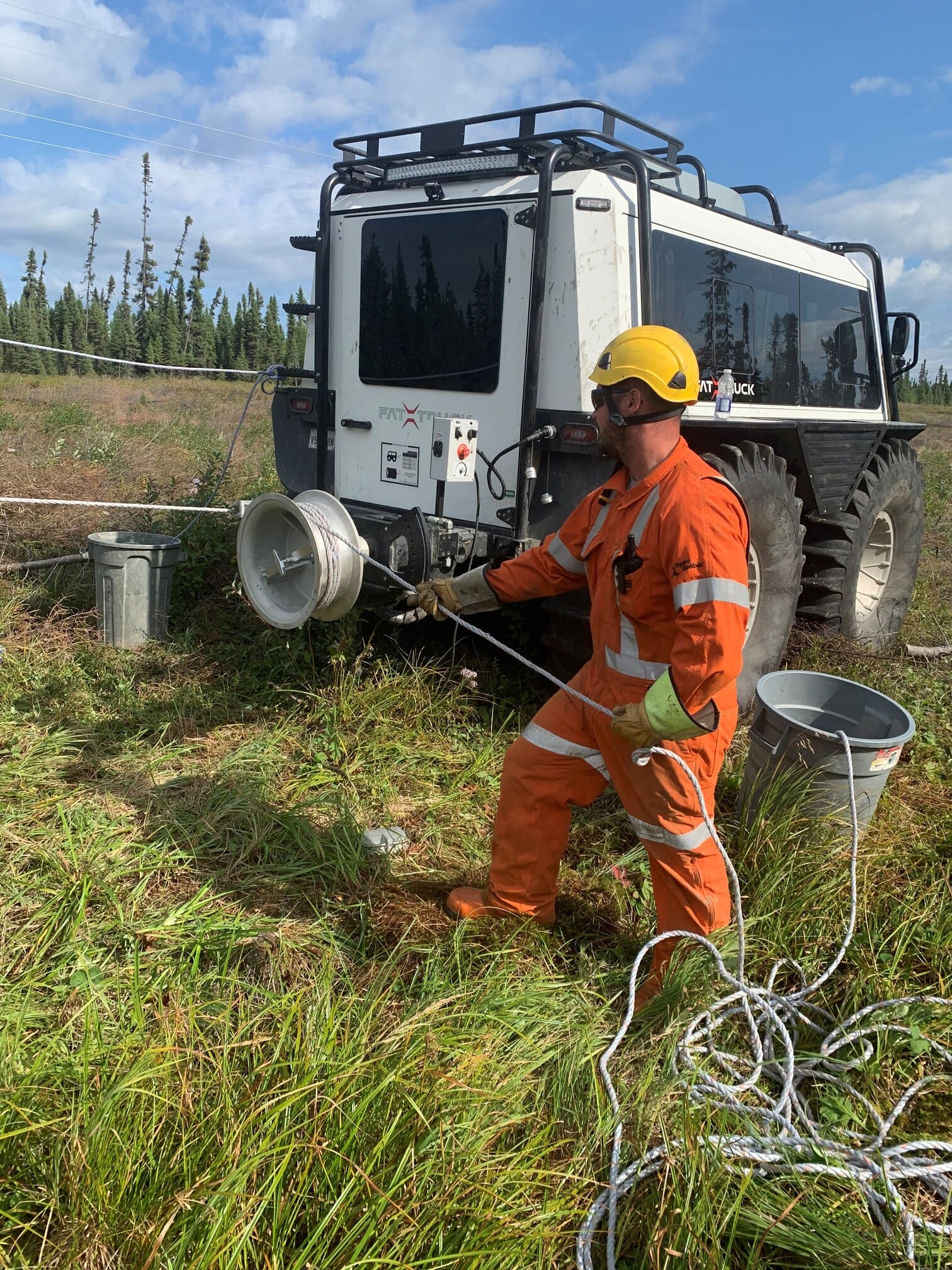

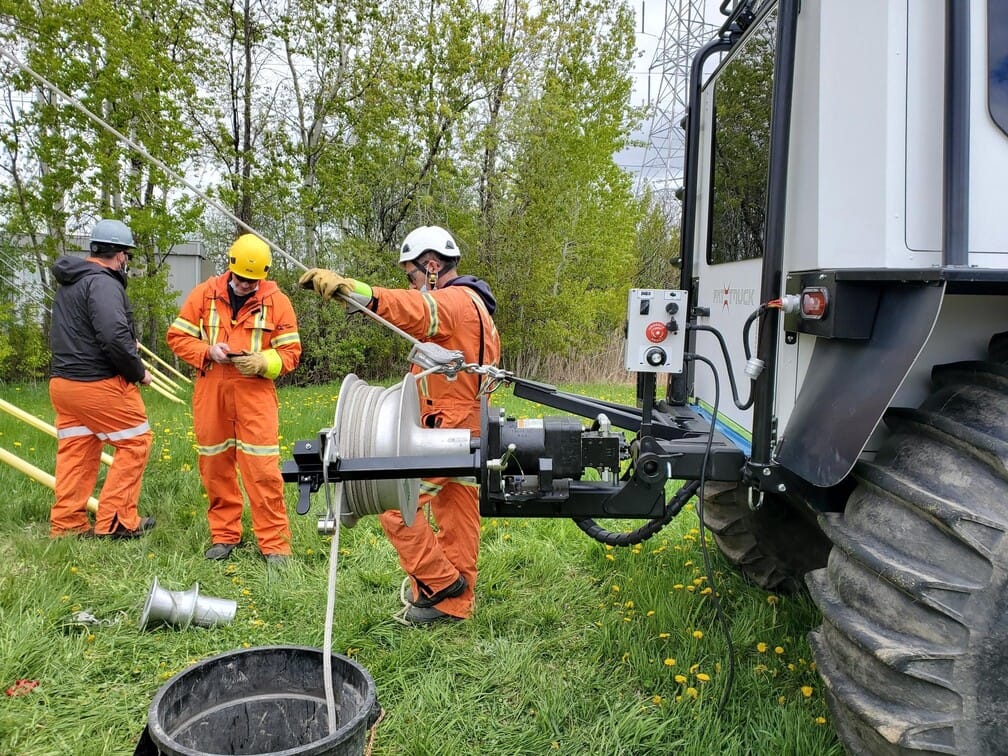

The four photos from this project capture the complete operation. In one shot, a crew member holds the line with the capstan visible in the close background, showing the working proximity the FT3 provided to tower locations. Another shows the capstan in the foreground with crew members calculating measurements, the detailed planning required for precision wire pulls across long distances.

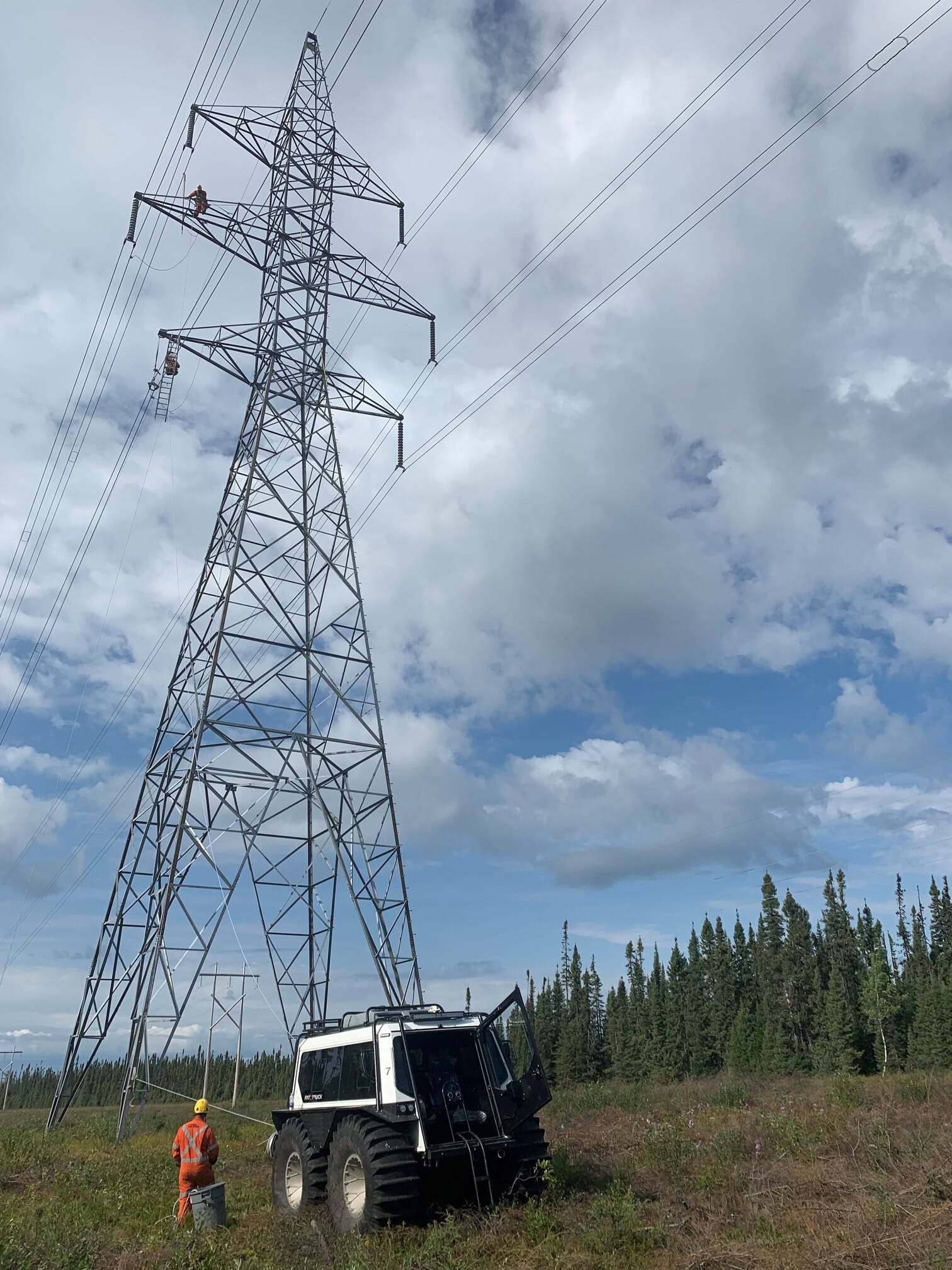

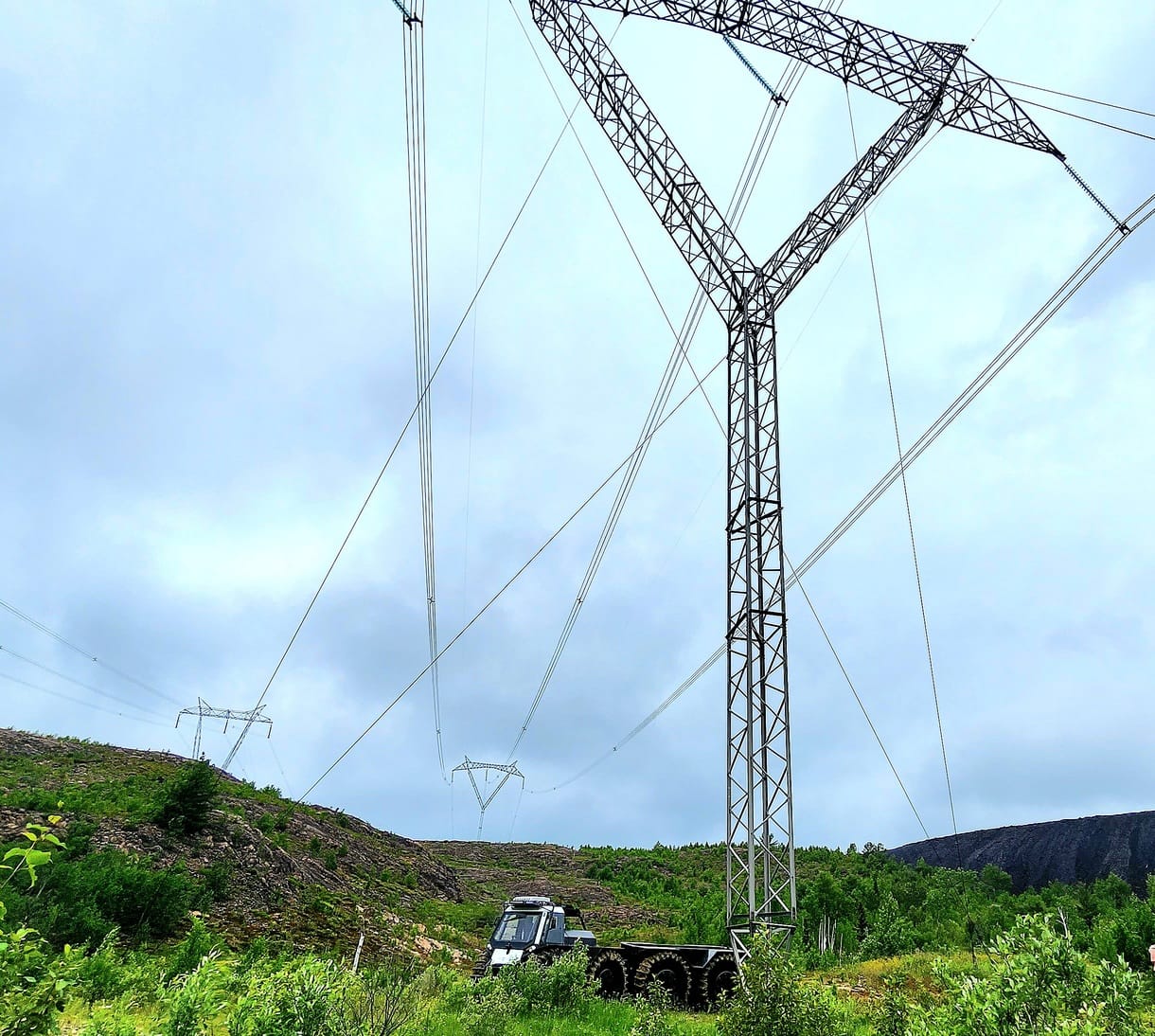

The final two photos reveal the complete setup: the FT3 positioned near the transmission tower with lines visibly being pulled, demonstrating how the machine served as a stable, stationary platform during operations. Once positioned, the FT3 didn't need to move, it became the anchor point for controlled wire pulling, just like a traditional truck-mounted capstan, but in locations no truck could reach.

Across 2.5 miles of transmission line replacement, the FT3-mounted capstan system allowed four crew members to complete work that would typically require multiple machines, additional specialized contractors, and significantly more personnel. The spring conditions—green grass showing new growth, but ground conditions still recovering from winter freeze-thaw cycles—would have made conventional access risky at best.

See More Fat Truck Missions

Mission Results

What Got Done on 2.5 Miles of Line Replacement

Four major gains from a single FT3 deployment — fewer machines, smaller crews, safer access, and faster completion.

Transmission Lines Replaced

The crew completed 2.5 miles of transmission line replacement using an FT3-mounted capstan platform, reaching tower locations conventional trucks could not access.

Smaller Crew, Less Equipment

Four crew members handled work that would normally require multiple specialized vehicles, extra operators, contractors, and temporary access solutions.

Faster Access Across Difficult Terrain

Spring mud, wet spots, and rolling hill terrain required no route preparation, detours, or recovery operations — the FT3 drove directly to each work location.

Safer, More Stable Operations

The FT3 provided a stable, low-center platform for wire-pulling under tension while keeping the crew protected inside a climate-controlled cabin between tower sites.

What the FT3 Capstan Platform Brings to the Field

Mobile Access for Specialized Utility Equipment

The Fat Truck FT3 turns wire-pulling equipment into a fully mobile transmission line platform, allowing crews to position capstan systems directly beside remote towers without temporary roads, specialized access builds, or contractor support. For utility operations working across soft ground, rolling terrain, and spring thaw conditions, the FT3 transforms difficult access into routine line work while maintaining the stability and control required for safe wire-pulling operations.

View our Case Studies

Mud & Wetlands

Soft, saturated ground that bogs standard vehicles

Snow & Ice

Frozen, slippery, and unpredictable winter terrain

Swamps & Marshes

Waterlogged vegetation and unstable peat

Shallow Water

Stream crossings and standing water barriers

Remote Off-Road

Unimproved routes far from paved access

The Bottom Line

Purpose-Built Meets Field-Proven

Utility work constantly demands solutions to the same fundamental problem: how do you get heavy, specialized equipment to remote locations where conventional vehicles can't operate? Custom builds and specialized contractors are one answer, but they're expensive, schedule-dependent, and often overkill for straightforward work.

The Fat Truck FT3 capstan platform represents a different approach: take field-proven equipment that crews already know how to operate and mount it to a platform that can actually reach the work sites. The result is familiar operations in unfamiliar locations—the best of both worlds.

For this 2.5-mile transmission line replacement, that meant four crew members, one machine, and zero access delays. The spring terrain that would have stopped conventional trucks became routine driving. The capstan operations that require stable platforms and precise control worked exactly as they would on traditional equipment, just in places traditional equipment could never reach.

When the choice is between hiring specialists or empowering your existing crew with better access, the FT3 proves that better access wins every time.

Talk to a Fat Truck Specialist

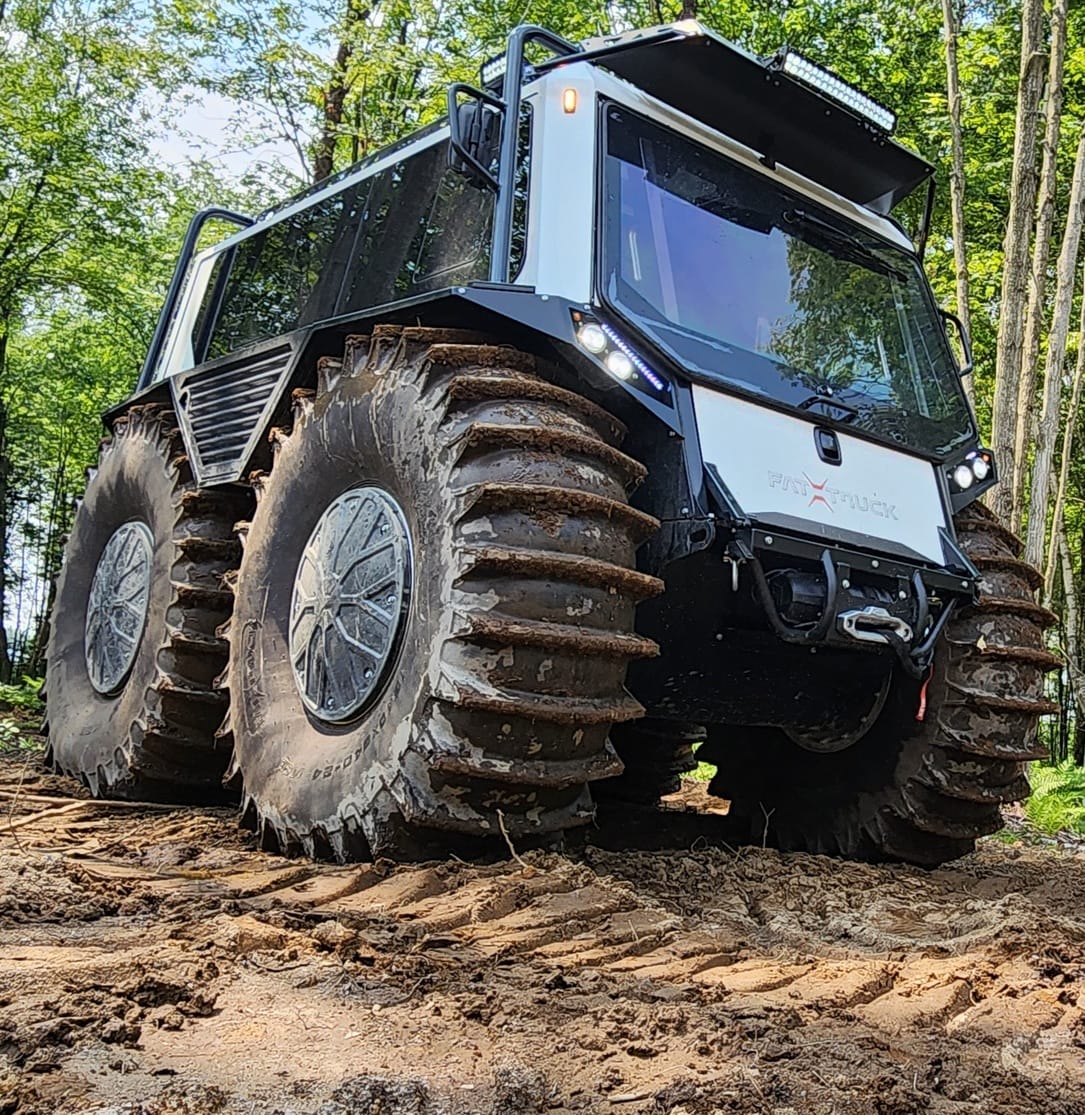

white fat truck driving on grassy terrain

“ Truck access required ” is no longer a limitation.

When transmission line work demands specialized equipment in terrain conventional vehicles can’t reach, the Fat Truck FT3 proves crews can position capstan systems directly at the work site, with fewer machines, smaller crews, and no access-road preparation.
